Everything You Need to Know About Four-Ball Wear Testing

Introduction

Four-ball testing remains one of the most widely used methods for assessing lubricants. Its ability to replicate severe point-contact conditions makes it indispensable for evaluating load-carrying capacity, wear resistance, and friction behaviour in real-world applications. Whether optimizing formulations for automotive, metal-working processes, or new lubricants, four-ball testing delivers reproducible and comparable results that guide research and product development. This article provides a structured overview – from lubricant fundamentals to practical testing using the FBT‑3, and offers insights on interpreting results effectively.

Summary of this article:

1. Lubricants and their requirements
2. Introduction to Four-Ball Testing
3. What is Four-Ball Test method?
4. Equipment and setup explained through FBT‑3
5. Understanding test results
6. Summary
7. Useful links



At its core, a lubricant’s purpose is simple: reduce friction and wear between moving surfaces. It forms a protective film that prevents direct metal-to-metal contact, lowers operating temperatures, resists corrosion, and helps flush out contaminants. This basic role hasn’t changed for centuries, but how lubricants achieve it has evolved remarkably (Figure 1).

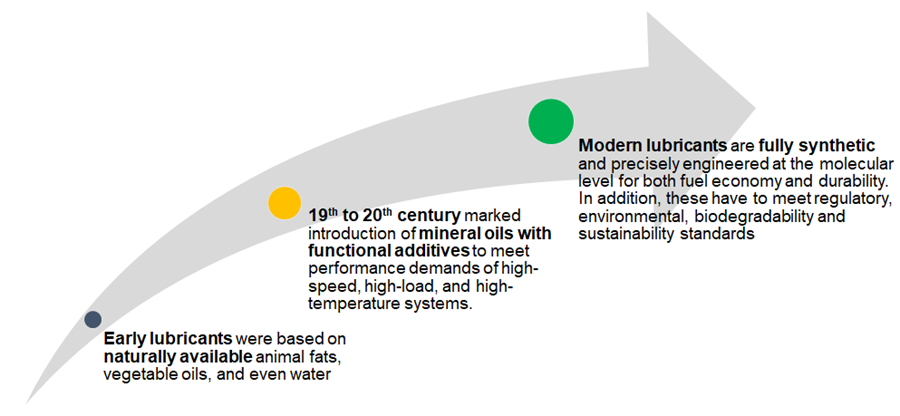

Figure 1. Timeline of lubricant evolution from naturally available animal fats to mineral oil with additives and currently, modern synthetics lubricants that are engineered at molecular level

Modern lubricants are the result of complex formulation engineering, balancing base oils, thickeners and performance additives for desired performance. Lubricants are formulated from base oils and additives. The grease-based counterparts have thickeners, in addition to base oil and additives. Base oils typically make up 70–90% of a lubricant and determine its fundamental properties, such as viscosity and thermal stability. According to the American Petroleum Institute (API), base oils are categorized into five groups (Table 1):

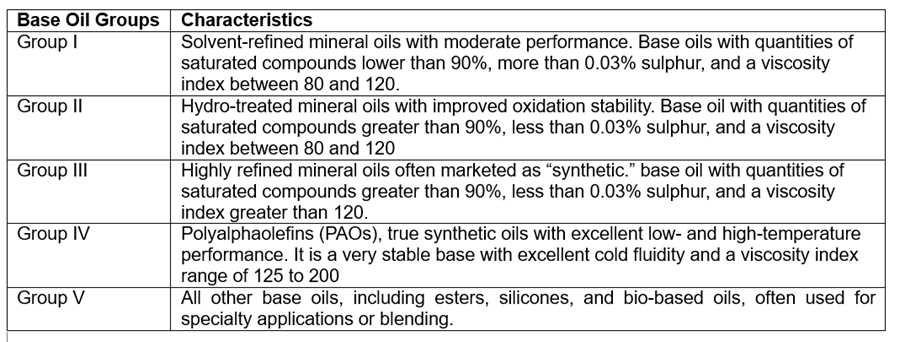

Table 1. The five categories of base oils as per API classification

Additives, which typically account for 10–25% of the formulation, enhance or modify base oil performance to meet specific requirements. Common additive categories include anti-wear agents, detergents, dispersants, antioxidants, viscosity index improvers and friction modifiers. Additives can be categorized as surface-active and bulk-active depending on their interaction (Table 2).

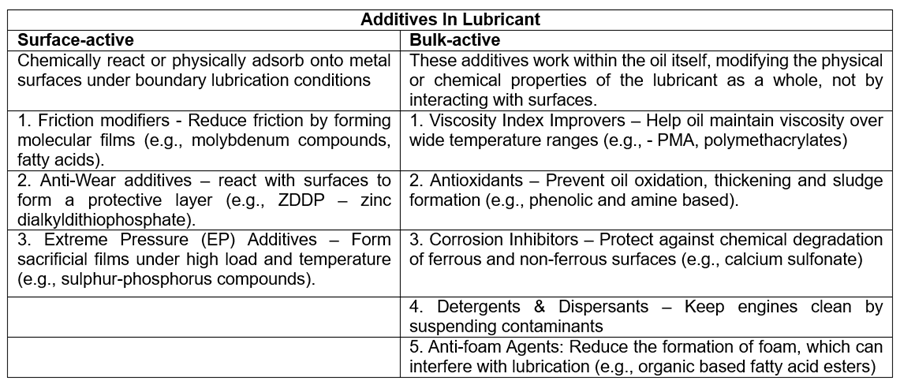

Table 2. Different categories of lubricant additives and their function’s

Such lubricants are designed not only for compatibility with materials and operating conditions but also to meet regulatory, environmental and sustainability standards. With greater complexity comes a greater need for reliable, repeatable testing.

Tribological testing provides quantifiable insights into how a lubricant performs under various conditions in terms of friction, load, motion, and temperature. Among the different standardized tests, the following are considered the workhorse of any lubricant lab:

• Four-Ball Test to assess moderate to extreme pressure boundary properties of lubricants under sliding motion as well as elasto-hydrodynamic behaviour such as shear-induced viscosity loss (with the KRL bearing module)


• Traction/Stribeck Test to assess elasto-hydrodynamic and moderate pressure boundary properties of lubricants under rolling/sliding motion

The key lubricant performance requirements based on the lubrication regime and operating conditions are shown in the Stribeck curve (Figure 2).

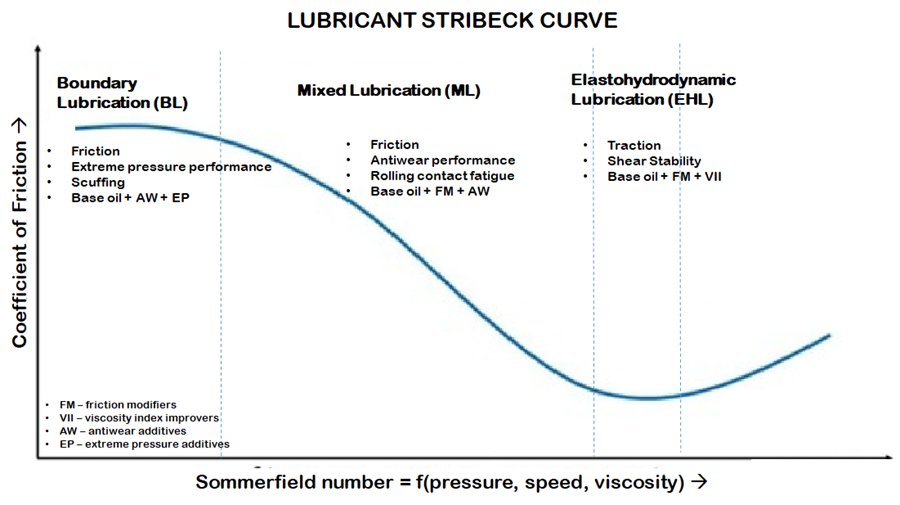

Figure 2. Lubricant Stribeck curve showing different regimes of lubrication and the required properties corresponding to the operating conditions. Key lubricant additives for each regime is indicated

One of the most widely recognized and reliable methods for lubricant development, benchmarking and quality assurance in this field is Four-Ball Testing. The Four-Ball Tester has been designed to carry out specific tests to evaluate friction, wear-prevention and load-carrying capabilities of lubricants under controlled conditions. The test is commonly used across all types of lubricants such as greases, oils and both oil-based, water-based metal-working and metal-forming fluids. The instrument is at the heart of numerous standards that have been developed across organizations such as ASTM, CEC, DIN, ISO and IP. Let’s dive into details of Four-Ball Testing.

The Four-Ball Test is a laboratory procedure designed to measure a lubricant’s ability to reduce wear or withstand extreme pressure. It involves three stationary steel balls arranged in a cradle (ball-pot) and a fourth ball mounted above, which rotates under specific values of normal load and rotational speed. The arrangement forms a self-aligning tetrahedron offering a simple and repeatable contact configuration.

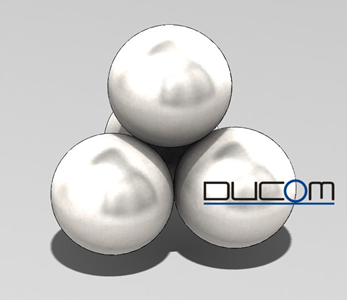

Figure 3. Four ball test configuration showing the tetrahedral geometry and off-axis loading between any ball pair

The contact between the rotating ball and the three stationary balls simulates sliding contact between lubricated surfaces. There are two key test categories, depending on the objective of the test:

• Wear prevention (WP) tests (e.g., ASTM D2266, ASTM D4172, other DIN tests) assess the long-term wear under moderate loads.


• Extreme Pressure (EP) tests (i.e., ASTM D2783, D2596, other DIN tests) that determine lubricant's ability to withstand increasing loads without causing surface damage or seizure. This method simulates short-duration, high-load contact conditions until lubricant failure, so called Weld Load


• Coefficient of friction (CoF) tests (i.e., ASTM D5183) evaluates a lubricant’s friction-reducing properties and its ability to prevent metal-to-metal contact under slow speed conditions using a Four-Ball Wear tester. Test are conducted on an existing scar of defined size, with load increased in steps till incipient seizure with friction being measured continuously throughout the test.

It does not perfectly mimic every industrial system, but it provides a standardized way to compare lubricants and detect changes in formulation or contamination. While there are other tribological methods available, the Four-Ball Test remains uniquely useful for benchmarking greases and oils against industry norms.

If you want to know more about WP and EP standard tests method (ASTM D2266 and ASTM D2783/D2596), read our guide What is the difference between WP and EP tests? at this link.

Three stationary spheres are placed in a triangular formation inside the test cup (ball pot), held firmly in place by a retaining ring so they do not rotate, and positioned to make even contact with the rotating upper ball. This geometry is critical for valid test results in wear and extreme pressure evaluations. A fourth rotating ball is mounted above them in a spindle or chuck and must be precisely aligned to make uniform contact with the three lower balls. All four balls are 12.7 mm in diameter and have a ± 0.00025 mm sphericity tolerance. Furthermore, all four balls are made of AISI 52100 steel with hardness of between 64 and 66 HRC. Since the geometry is a critical factor, their surface must be highly polished with Ra ≤ 0.02 µm surface finish. Standardized balls ensure consistent and repeatable test conditions.

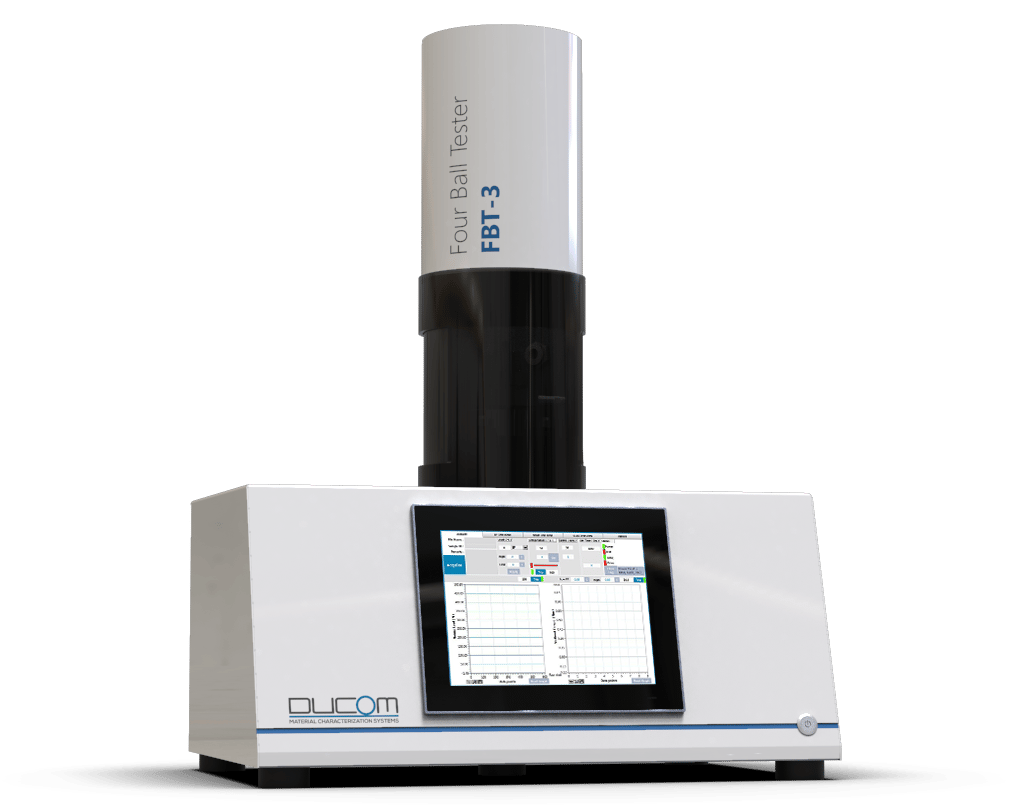

Figure 4. Ducom automated Four Ball Tester (FBT-3)

The test lubricant is poured into the cup to fully immerse the contact area between the balls and a vertical load is applied, pressing the rotating ball against the three stationary balls. The exact value of parameters such us applied load, rotational speed, temperature and duration vary depending on the specific standard and test objective. (Figure 5).

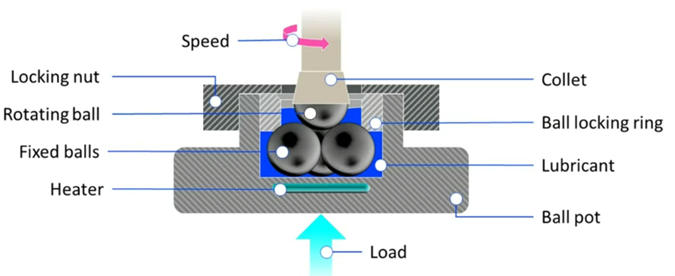

Figure 5. Four ball setup with the balls and lubricant in the ball pot and test parameters such as load, temperature, speed

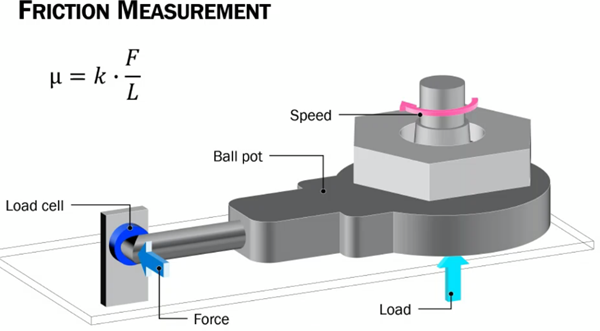

Figure 6. Friction measurement in four ball setup with a precision force sensor

Lubricant friction during the test is accurately measured using an arm connected to the ball pot base that connects to a precision force sensor (Figure 6).

If you want to know more about how to set up an EP test on FBT-3, read our complete guide at this link.

Four-Ball Test results provide quantifiable insights into a lubricant’s performance under defined conditions. While the raw numbers – such as wear scar diameter, weld point, and load-wear index – are valuable, their real power lies in contextual interpretation. While evaluating the results, these principles may guide the interpretation:

• Application relevance: For high-load applications (e.g., gears, heavy bearings), the weld point and LWI are often more critical. For high-duty-cycle environments, low wear scar diameters take priority.
• Additive impact: Differences in anti-wear or EP additives will show up distinctly in these metrics.
• Test-to-test consistency: Always interpret results in the context of repeatability and standard deviation, especially when values are close.

Application 1: Thermal Conductivity Meets Tribology: Evaluating Material Performance with the Four Ball Tester (read more here).

Application 2: Reducing Compressor Wear with Low-Viscosity Lubricants: A Four Ball Tester Case Study (ASTM D5183) (read more here).

Application 3: Enhancing Anti-Wear properties of MetalForming Lubricants (read more here).

6. Summary

Four-Ball Testing continues to be one of the most widely used and reliable methods for assessing the performance of lubricant. Whether you're testing for wear resistance, extreme pressure tolerance, or both, the method guarantees clear and standardized data to guide decisions in formulation, quality control and product selection.

Stay tuned for the next article that summarizes all global four ball tests standards (ASTM/DIN/IP/ISO) and the precision statement in a single document, a must-have resource for any lubricant lab
